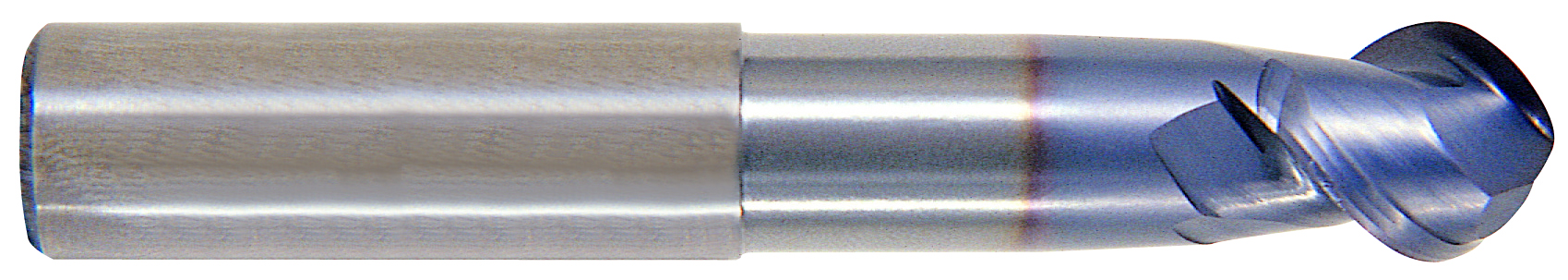

YG-1 37593TC 1/2 x 1/2 N.460 2 FLUTE REGULAR LENGTH 50 DEGREE HELIX BALL TICN-COATED ALU-POWER
SKUPDW~10947675
MFGR #37593TC
Your Cost: $119.65/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number 37593TC Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 0.2700 lb Helix Angle 50 ° Material Carbide Neck Diameter 0.46 in Nose Radius 0.25 in Series E5974 Shank Style Plain Shank Type Plain Type Carbide, 2 Flute 50° Helix Stub Cut Length Ball Nose with Neck Usable Length 1.5 in Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 0.5 in Finish TiCN Length of Cut 0.4063 in Number of Flutes 2 Overall Length 3 in Shank Diameter 0.5 in Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | 37593TC |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.2700 lb |
| Helix Angle | 50 ° |
| Material | Carbide |
| Neck Diameter | 0.46 in |
| Nose Radius | 0.25 in |
| Series | E5974 |
| Shank Style | Plain |
| Shank Type | Plain |
| Type | Carbide, 2 Flute 50° Helix Stub Cut Length Ball Nose with Neck |
| Usable Length | 1.5 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 0.5 in |
| Finish | TiCN |
| Length of Cut | 0.4063 in |
| Number of Flutes | 2 |
| Overall Length | 3 in |
| Shank Diameter | 0.5 in |
| Non-Ferrous Materials |
